Basic GPU Optimisation

A look at optimising Matrix Multiplication on a GPU.

There are many different types of GPUs out there and even more frameworks built to run code on them.

Today we will explore using GPUs for matrix multiplication, starting with the basics and moving toward a more optimised kernel.

For this experiment, I'm using CUDA on a Jetson Nano 4GB dev board.

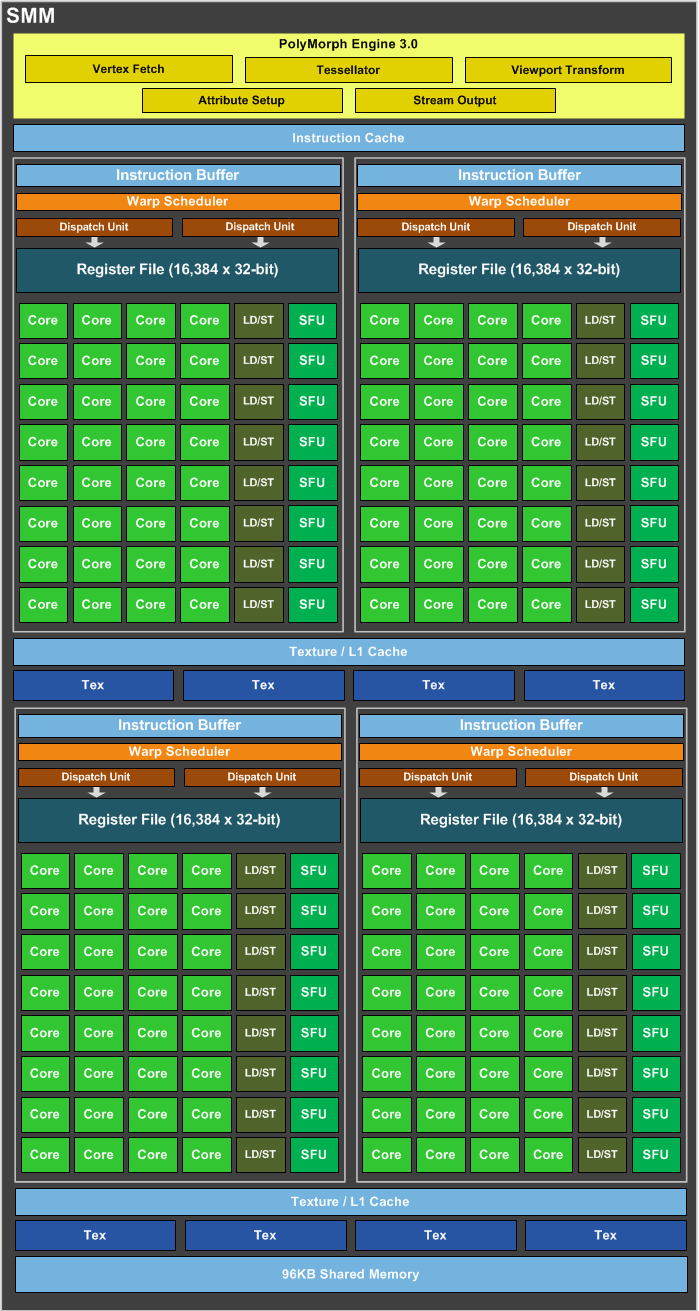

The Jetson Nano is essentially a cut down version of the GPU used in the Nintendo Switch, featuring just 128 CUDA cores and built using the Maxwell architecture.

---

Naive Kernel

We'll start with a simple naive matrix multiplication kernel. This serves as our baseline for performance testing.

Our performance metric will be GFLOPs.
According to the Maxwell wiki page we can estimate the theoretical peak performance as:

Formula:
2 x (number of CUDA cores) x (core clock speed in Hz)

With default clocks (921.6 MHz):

2 x 128 x 0.9216 = 236 GFLOPs FP32

With MAX-N clocks (1.479 GHz):

2 x 128 x 1.479 = 379 GFLOPs FP32

This calculation simply ignores the affect of Memory Bandwidth and therefore will be completely Theoretical.

For peak realworld we are going to use the preoptimised kernels provided by cuBLAS. With these kernels we can reach:

Execution time: 0.980652 seconds
Average GFLOPS: 175.188

Now with expectations in place we can begin.
Below is a naive kernel, it is a function that will be run on the GPU.
It multiplies A by B and stores the output in C.
This computation is done in parallel.

__global__ void matrix_multiply(const float* A, const float* B, float* C,
                                uint M, uint N, uint P) {
    uint i = blockIdx.y * blockDim.y + threadIdx.y;
    uint j = blockIdx.x * blockDim.x + threadIdx.x;

    if (i >= M || j >= P) return;

    float sum = 0.0f;
    for (uint k = 0; k < N; ++k) {
        sum += A[i * N + k] * B[k * P + j];
    }
    C[i * P + j] = sum;
}

The output of this kernel is:

Execution time: 13.8172 seconds
Average GFLOPS: 12.4336

Profiling

10x slower than cublas. So why is this slow?
nvprof to the rescue.

Here we can see that we are computationally bound by our kernel not the intial memory transfers:

            Type  Time(%)      Time     Calls       Avg       Min       Max  Name
 GPU activities:   99.52%  15.5148s        11  1.41044s  1.39188s  1.55823s  matrix_multiply(float const *, float const *, float*, unsigned int, unsigned int, unsigned int)
                    0.35%  53.967ms         2  26.983ms  24.185ms  29.782ms  [CUDA memcpy HtoD]
                    0.13%  20.768ms         1  20.768ms  20.768ms  20.768ms  [CUDA memcpy DtoH]
      API calls:   97.09%  15.5216s        11  1.41105s  1.39320s  1.55981s  cudaDeviceSynchronize
                    2.18%  348.64ms         1  348.64ms  348.64ms  348.64ms  cudaDeviceSetLimit
                    0.50%  80.323ms         3  26.774ms  22.138ms  29.474ms  cudaMemcpy
                    0.18%  29.480ms         3  9.8265ms  9.7718ms  9.8927ms  cudaMalloc
                    0.04%  5.7551ms        11  523.19us  99.637us  1.4802ms  cudaLaunchKernel
                    0.01%  972.73us         3  324.24us  304.18us  350.11us  cudaFree
                    0.00%  132.61us        97  1.3670us     729ns  34.064us  cuDeviceGetAttribute
                    0.00%  38.959us         1  38.959us  38.959us  38.959us  cudaGetDeviceProperties
                    0.00%  10.260us         1  10.260us  10.260us  10.260us  cuDeviceTotalMem
                    0.00%  7.6560us         3  2.5520us  1.3020us  3.2810us  cuDeviceGetCount
                    0.00%  3.9590us         2  1.9790us  1.6150us  2.3440us  cuDeviceGet
                    0.00%  2.1870us         1  2.1870us  2.1870us  2.1870us  cuDeviceGetName
                    0.00%  1.0940us         1  1.0940us  1.0940us  1.0940us  cuDeviceGetUuid

Optimising with Tiling

So we need to improve the kernel.
The big problem with our kernel is that it accesses global memory every time it needs a value. One of the ways to optimize around this is by using tiling. This is the approach of "caching" global data in shared memory to avoid the cost repeatedly accessing global memory.

__global__ void matrix_multiply(const float *A, const float *B, float *C,
                                uint M, uint N, uint P)
{
    uint i = blockIdx.y * blockDim.y + threadIdx.y;
    uint j = blockIdx.x * blockDim.x + threadIdx.x;

    if (i >= M || j >= P) return;

    constexpr auto TILE 16;
    __shared__ float tileA[TILE][TILE];
    __shared__ float tileB[TILE][TILE];

    float sum = 0.0f;
    for (uint t = 0; t < (N + TILE - 1) / TILE; t++)
    {
        if (i < M && t * TILE + threadIdx.x < N)
            tileA[threadIdx.y][threadIdx.x] = A[i * N + t * TILE + threadIdx.x];
        else
            tileA[threadIdx.y][threadIdx.x] = 0;

        if (j < P && t * TILE + threadIdx.y < N)
            tileB[threadIdx.y][threadIdx.x] = B[(t * TILE + threadIdx.y) * P + j];
        else
            tileB[threadIdx.y][threadIdx.x] = 0;

        __syncthreads();

        for (uint k = 0; k < TILE; k++)
            sum += tileA[threadIdx.y][k] * tileB[k][threadIdx.x];

        __syncthreads();
    }
}

This one change brings an almost 5x speed up and highlights the importance of memory access patterns on GPU performance.

Execution time: 2.83375 seconds
Average GFLOPS: 60.6258

For now I'll leave this here, I recommend you experiment and research further.
Even with this result we are still far away from theoretical limit or even the cuBLAS result so still there is plenty of optimisation to go.
There are a ton of great resources availible out there e.g. CUDA C++ Best Practices Guide.
